NYLITE ASSEMBLIES:
SPOOL, SHIELD, & SHACKLE

Easily installed into or removed from a premade soft eye. Nylite spool is only 1/7th the weight of steel. Connectors will not deform or rupture from repeated loading. The shackle takes advantage of the high-strength Nylite connector and synthetic rope.

Working Details

  • Working loads, as given, are based on pin-bore relationships provided by use of the Nylite Shackle. When using a non-standard pin, the working load as given DOES NOT APPLY.
  • The HP aluminum spool is available for use with high-performance Class II ropes in sizes -1 through -5.
  • Aluminum spools are not recommended for continuous use in submerged marine environments.
  • All working load values are based on a 4:1 safety factor.

Assembly ratings are based on the use of designated spools and shackles. Spools used in conjunction with other hardware are not rated by Samson.

Product Code

964

rig nylite image

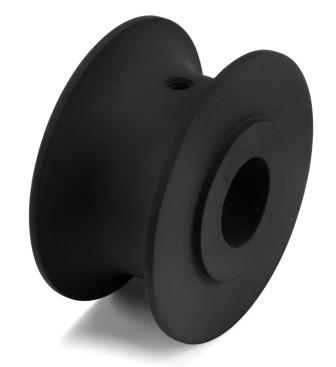

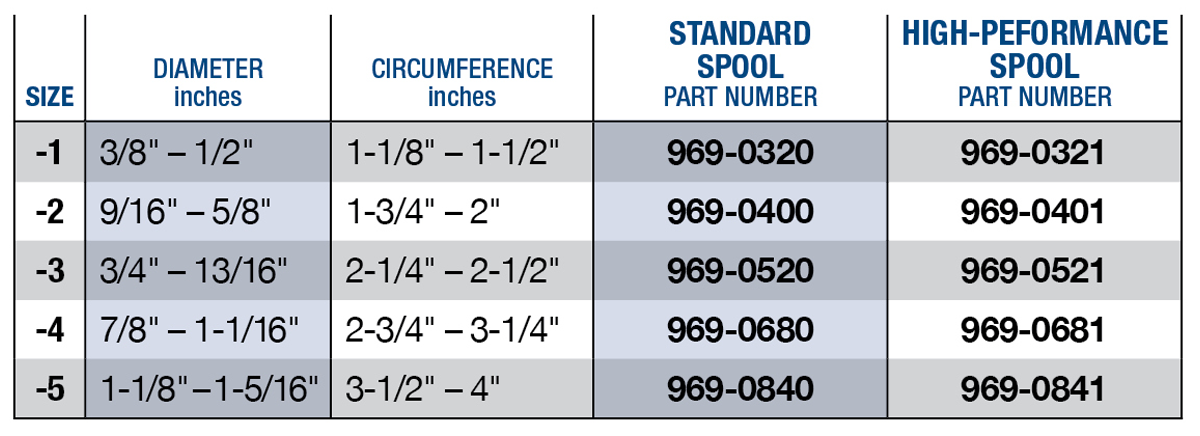

  • 969_spool_classi_nylite_2 image

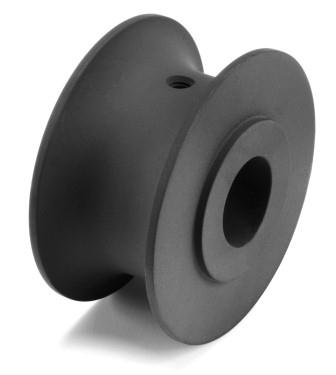

  • 969_spool_classii__aluminum image

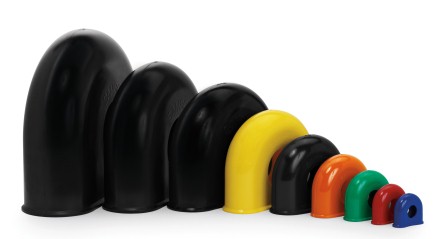

  • 969_nylite_shields_2 image

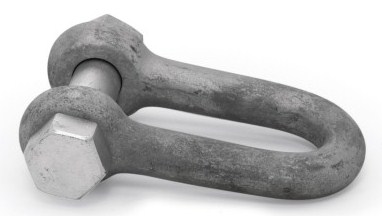

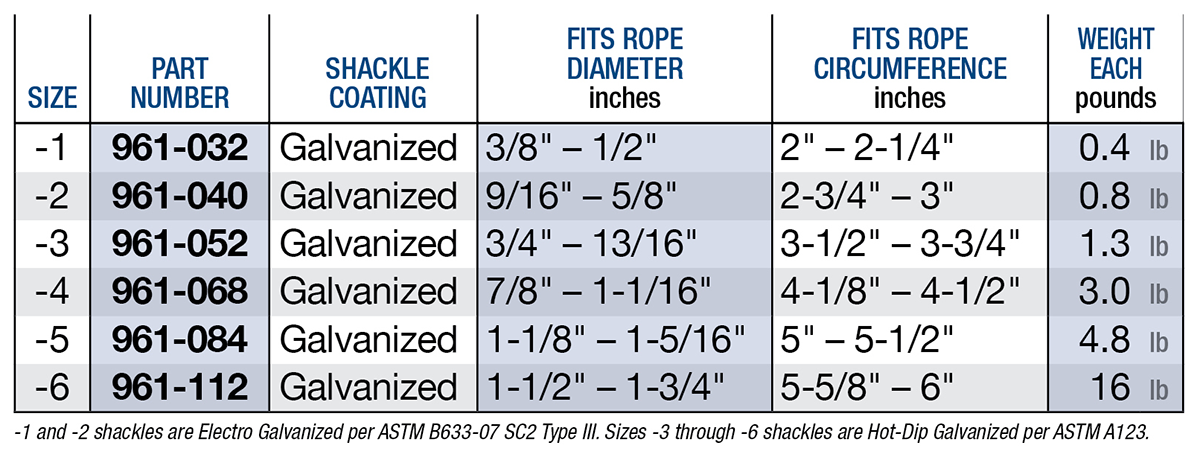

  • 961_nylite_shackle_2 image

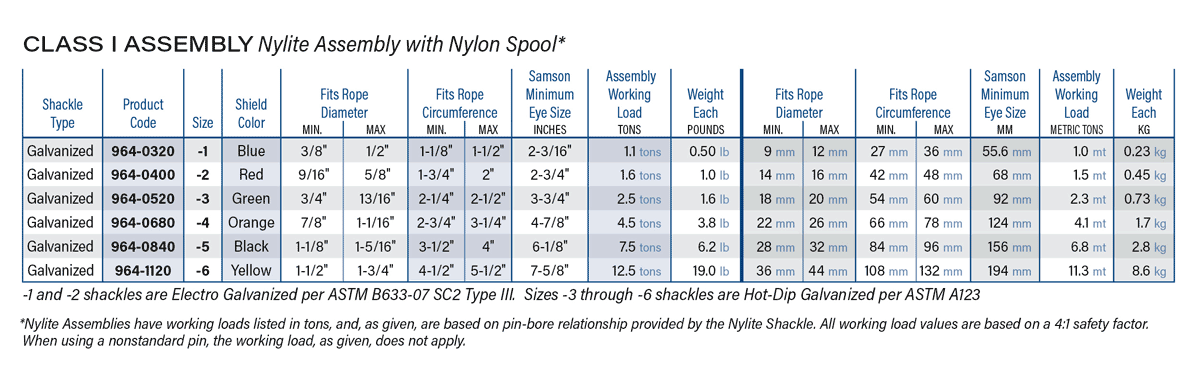

CLASS I ASSEMBLY Nylite Assembly with Nylon Spool
Nylite_Table_Class_II_Assembly_2018
Nylite_Assembly_Dimensions_plus_Diagram_2018
