LINK-ITTM

Link-It is a button-knot soft shackle made from Samson’s AmSteel® -Blue, providing an easy-to-use, lightweight connection method. Replacing steel shackles or other connection types, Link-It will not corrode or rust has short connection lengths, and can even be used as an overload indicator. Link-It comes with an attached tag with rating information included.

Product Code

809

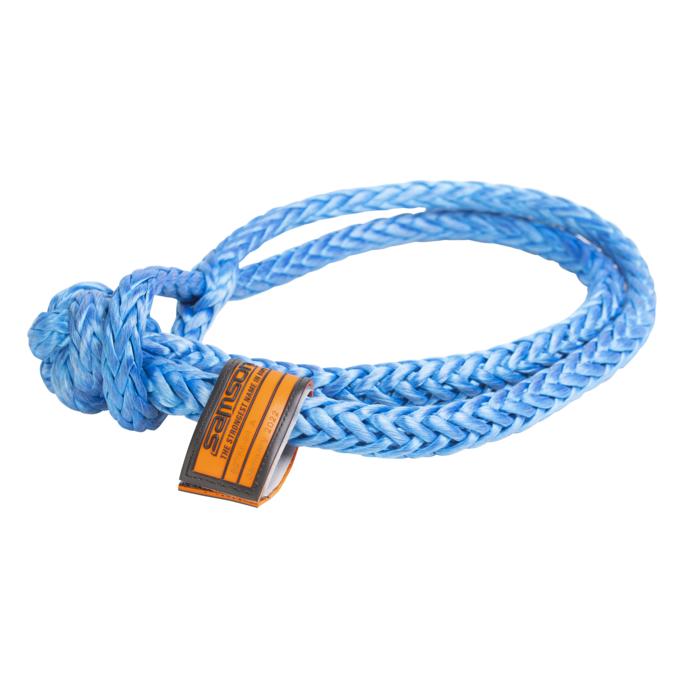

  • 809_link-it_soft_shackle image
  • link-it-close-up image

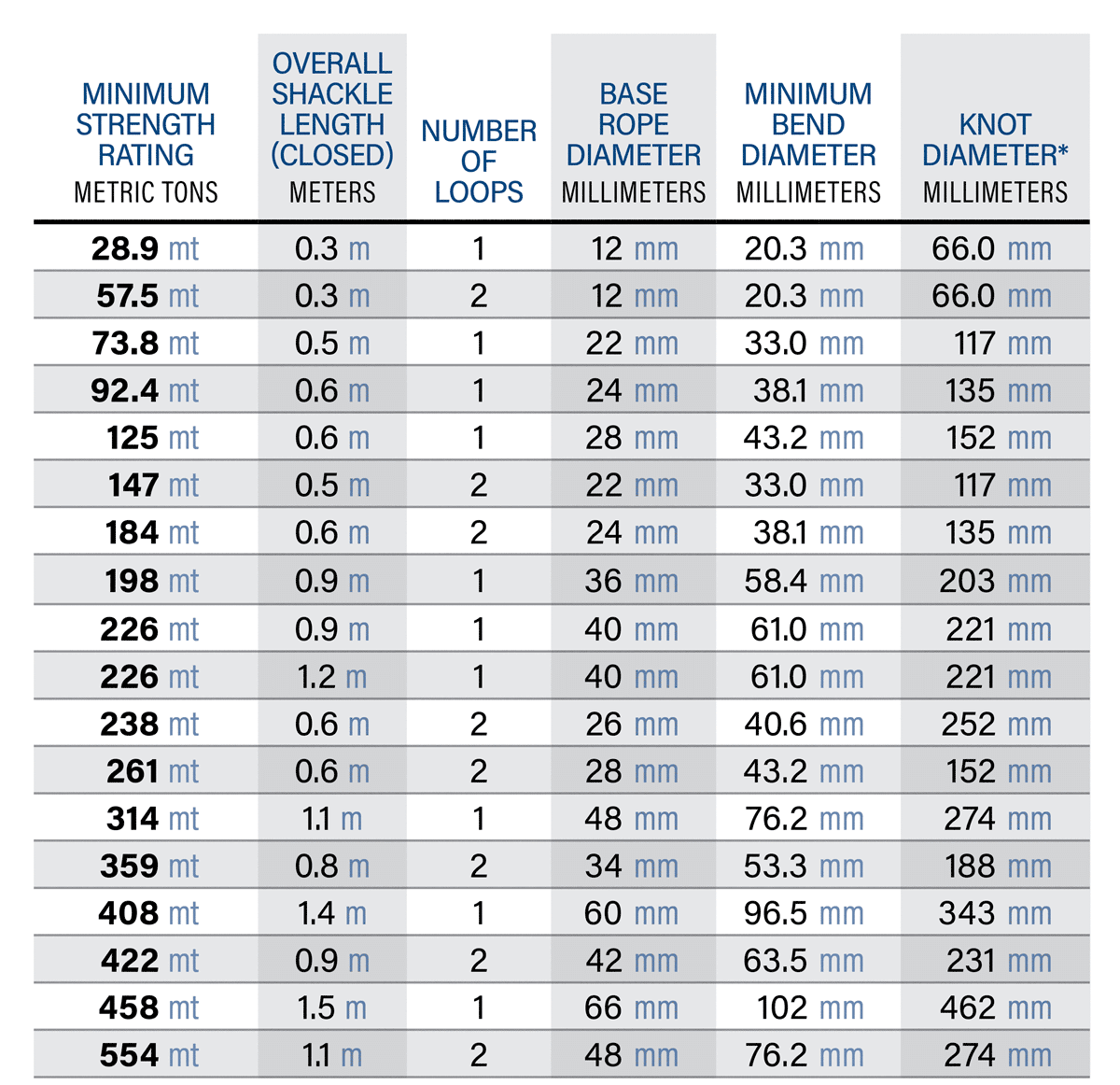

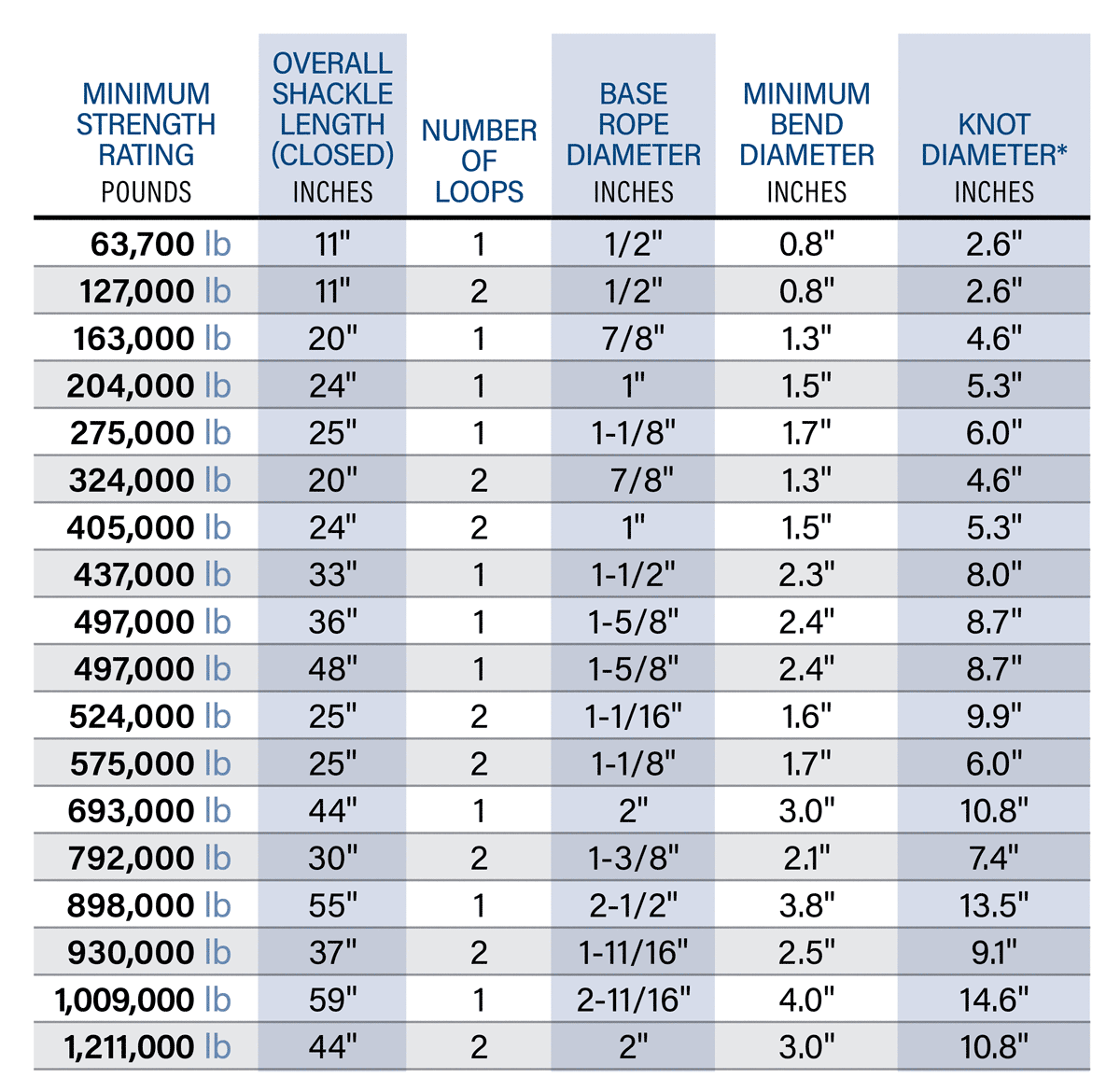

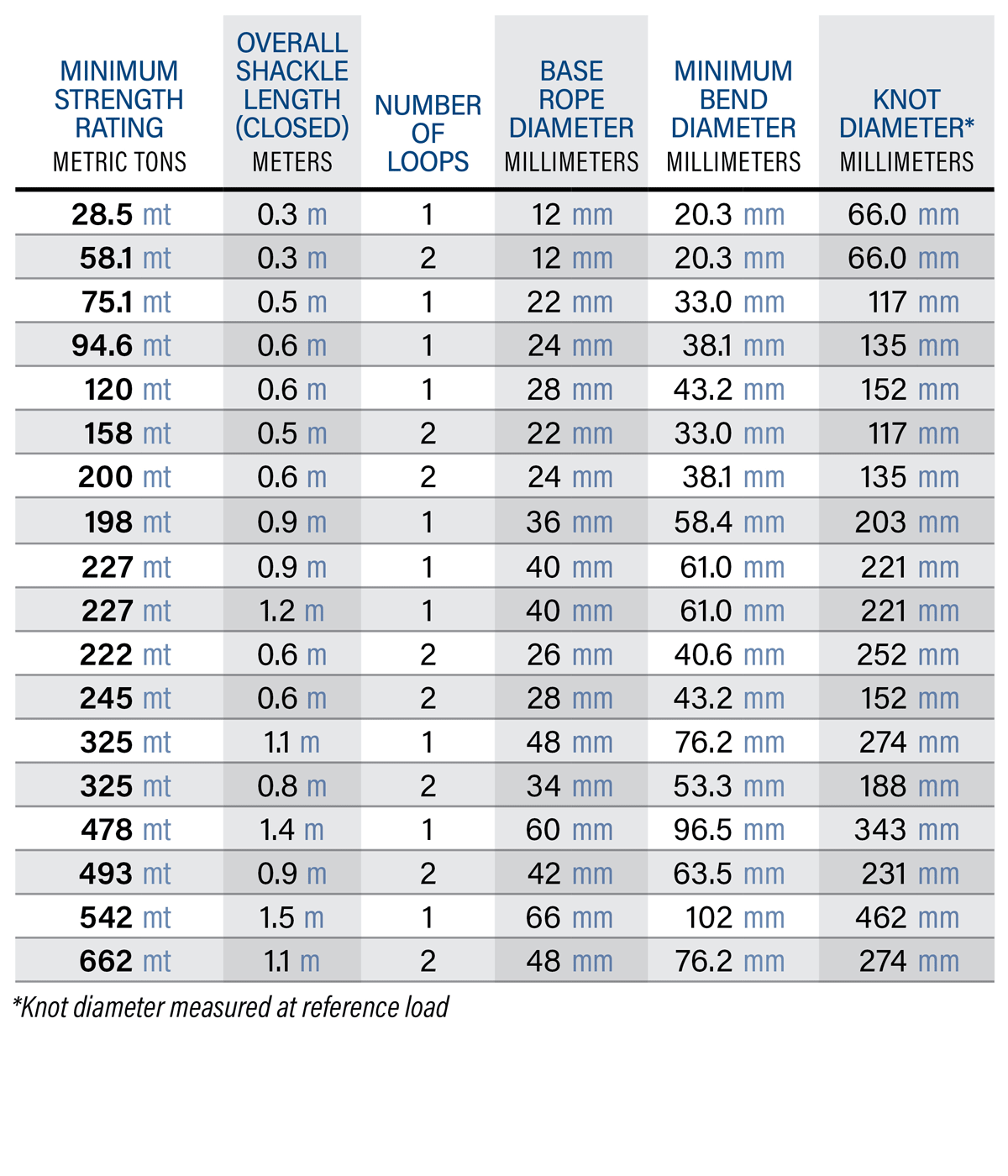

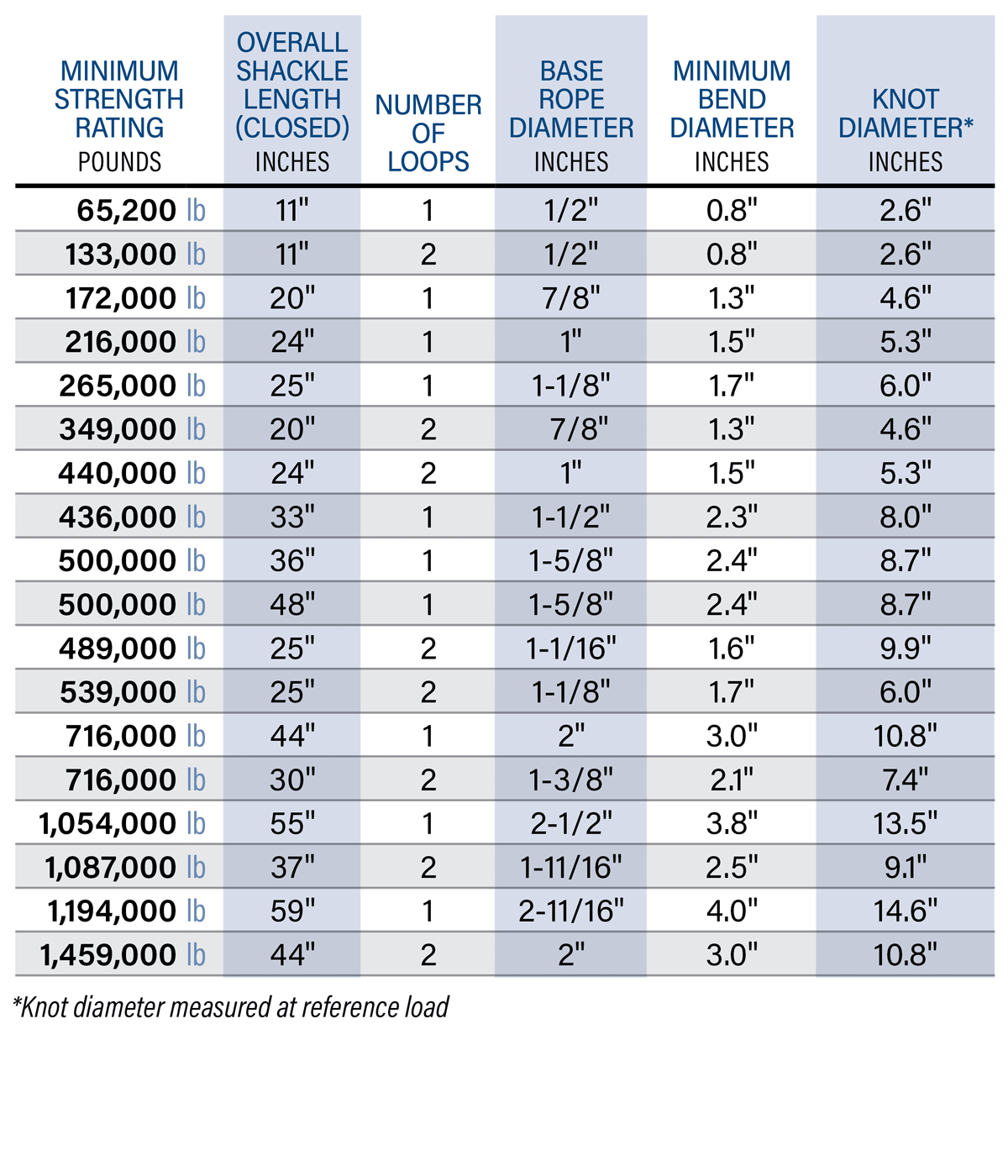

Link-It Soft Shackle Imperial SpecificationsLinkIt_metric

*Spliced Strength. Strengths are based on a minimum D/d ratio of 2.5 between the Bend Diameter and the Base Rope nominal Diameter. Samson does not recommend the use of Link-It below a D/d ratio of 2.5. Samson provides  Link-It soft shackles with a durable tag. Please refer to the tag for important usage information. Specifications only apply to Samson manufactured Link-It soft shackles.

SINGLE PASS INSTALLATION INSTRUCTIONSView PDF
TWO PASS INSTALLATION INSTRUCTIONSView PDF
LINK-IT & LINK-IT PLUS INSPECTION GUIDEView PDF
